Docker

Docker

Docker is a platform for developers and sysadmins to develop, deploy, and run applications with containers. The use of Linux containers to deploy applications is called containerization. Containers are not new, but their use for easily deploying applications is.
Containerization is increasingly popular because containers are:

• Flexible: Even the most complex applications can be containerized.
• Lightweight: Containers leverage and share the host kernel.
• Interchangeable: You can deploy updates and upgrades on-the-fly.
• Portable: You can build locally, deploy to the cloud, and run anywhere.
• Scalable: You can increase and automatically distribute container replicas.
• Stackable: You can stack services vertically and on-the-fly.

Docker 的思想来自于集装箱，集装箱解决了什么问题？在一艘大船上，可以把货物规整的摆放起来。并且各种各样的货物被集装箱标准化了，集装箱和集装箱之间不会互相影响。那么我就不需要专门运送水果的船和专门运送化学品的船了。只要这些货物在集装箱里封装的好好的，那我就可以用一艘大船把他们都运走。

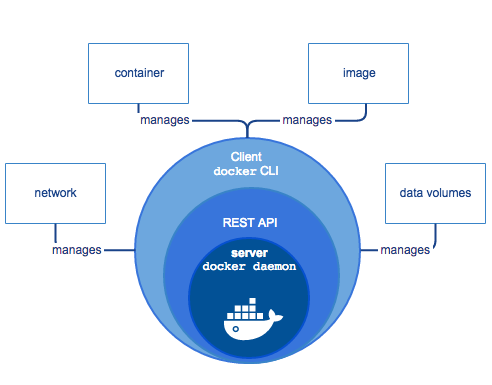

Docker Engine

Docker Engine is a client-server application with these major components:

• A server which is a type of long-running program called a daemon process (the dockerd command).

• A REST API which specifies interfaces that programs can use to talk to the daemon and instruct it what to do.

• A command line interface (CLI) client (the docker command).

The CLI uses the Docker REST API to control or interact with the Docker daemon through scripting or direct CLI commands. Many other Docker applications use the underlying API and CLI.

The daemon creates and manages Docker objects, such as images, containers, networks, and volumes.

Docker architecture

Docker uses a client-server architecture. The Docker client talks to the Docker daemon, which does the heavy lifting of building, running, and distributing your Docker containers. The Docker client and daemon can run on the same system, or you can connect a Docker client to a remote Docker daemon. The Docker client and daemon communicate using a REST API, over UNIX sockets or a network interface.

Images and containers

A container is launched by running an image. An image is an executable package that includes everything needed to run an application the code, a runtime, libraries, environment variables, and configuration files.

A container is a runtime instance of an image what the image becomes in memory when executed (that is, an image with state, or a user process). You can see a list of your running containers with the command, docker ps, just as you would in Linux.

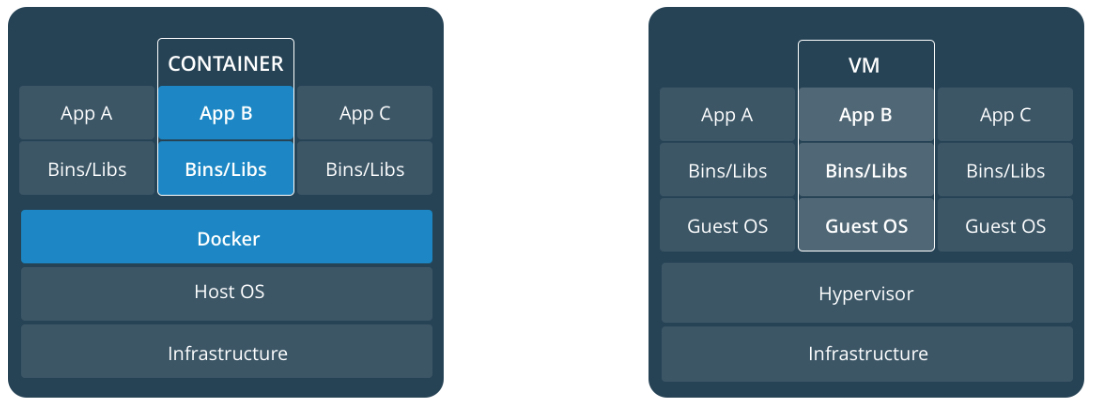

Containers and virtual machines

A container runs natively on Linux and shares the kernel of the host machine with other containers. It runs a discrete process, taking no more memory than any other executable, making it lightweight.

By contrast, a virtual machine (VM) runs a full-blown “guest” operating system with virtual access to host resources through a hypervisor. In general, VMs provide an environment with more resources than most applications need.

Docker Version

$ docker --version
Docker version 18.06.1-ce, build e68fc7a

$ docker version
Client: Docker Engine - Community
 Version:           18.09.1
 API version:       1.39
 Go version:        go1.10.6
 Git commit:        4c52b90
 Built:             Wed Jan  9 19:33:12 2019
 OS/Arch:           darwin/amd64
 Experimental:      false

Server: Docker Engine - Community
 Engine:
  Version:          18.09.1
  API version:      1.39 (minimum version 1.12)
  Go version:       go1.10.6
  Git commit:       4c52b90
  Built:            Wed Jan  9 19:41:49 2019
  OS/Arch:          linux/amd64
  Experimental:     true

$ docker-compose --version
docker-compose version 1.22.0, build f46880f

$ docker-machine --version
docker-machine version 0.15.0, build b48dc28d

$ docker info
Containers: 9
 Running: 2
 Paused: 0
 Stopped: 7
Images: 74
Server Version: 18.06.1-ce

docker CLI:

• build – builds an image from a Dockerfile
• images – lists all local images
• pull – pulls an image from docker hub
• create – create a container from an image
• ps – list running containers (parameter -a also lists stopped containers)
• start / stop – start or stop a container
• docker run [OPTIONS] IMAGE [COMMAND][arg…]: Run a command in a new container
• docker exec [OPTIONS] CONTAINER COMMAND [ARG…]: Run a command in a running container

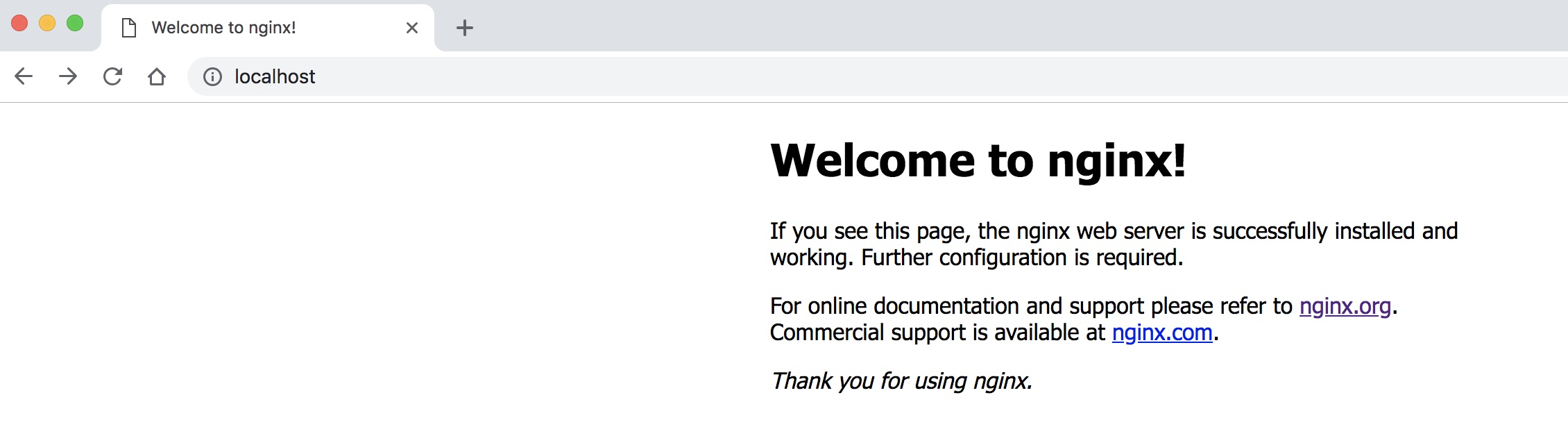

Test run Nginx web server

docker pull nginx

docker run -d -p 80:80 --name webserver nginx

docker ps

docker exec -it webserver bash

docker stop webserver
docker rm webserver

Recap and cheat sheet

## List Docker CLI commands
docker
docker container --help

## Display Docker version and info
docker --version
docker version
docker info

## Execute Docker image
docker run hello-world

## List Docker images
docker image ls
docker image ls ubuntu
docker image ls -f label=com.example.version=0.1
docker image ls -q
docker image ls --format "{{.ID}}: {{.Repository}}"
docker image ls --format "table {{.ID}}\t{{.Repository}}\t{{.Tag}}"

## List Docker containers (running, all, all in quiet mode)
docker container ls
docker container ls --all
docker container ls -aq

## Size of images
docker system df
## clean docker image and container
docker system prune -a

Dockerfile

• Best practices for writing Dockerfiles
• Overview of Docker Compose

FROM nginx
RUN echo '<h1>Hello, Docker!</h1>' > /usr/share/nginx/html/index.html

docker build -t friendlyhello .  # Create image using this directory's Dockerfile
docker run -p 4000:80 friendlyhello  # Run "friendlyhello" mapping port 4000 to 80
docker run -d -p 4000:80 friendlyhello         # Same thing, but in detached mode
docker run --name <your-new-container-name> -p 8081:8080 jenkins:1.651.2 # same effect as the docker create and docker start
docker container ls                                # List all running containers
docker container ls -a             # List all containers, even those not running
docker container stop <hash>           # Gracefully stop the specified container
docker container kill <hash>         # Force shutdown of the specified container
docker container rm <hash>        # Remove specified container from this machine
docker container rm $(docker container ls -a -q)         # Remove all containers
docker ps
docker exec -it jenkins-tutorials bash
docker exec -i -t container_name /bin/bash
docker exec -ti my_container sh -c "echo a && echo b"
docker image ls -a                             # List all images on this machine
docker image rm <image id>            # Remove specified image from this machine
docker image rm $(docker image ls -a -q)   # Remove all images from this machine
docker login             # Log in this CLI session using your Docker credentials
docker tag <image> username/repository:tag  # Tag <image> for upload to registry
docker push username/repository:tag            # Upload tagged image to registry
docker run username/repository:tag                   # Run image from a registry

docker run \
  --rm \
  --name jenkins-tutorials \
  -u root \
  -p 9000:8080 \
  -v jenkins-data:/var/jenkins_home \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v "$HOME":/home \
  jenkinsci/blueocean


docker exec -it jenkins-tutorials bash

Docker Compose

docker stack ls                                            # List stacks or apps
docker stack deploy -c <composefile> <appname>  # Run the specified Compose file
docker service ls                 # List running services associated with an app
docker service ps <service>                  # List tasks associated with an app
docker inspect <task or container>                   # Inspect task or container
docker container ls -q                                      # List container IDs
docker stack rm <appname>                             # Tear down an application
docker swarm leave --force      # Take down a single node swarm from the manager

RUN 执行命令

• shell 格式: RUN <命令>，就像直接在命令行中输入的命令一样

  RUN echo '<h1>Hello, Docker!</h1>' > /usr/share/nginx/html/index.html

• exec 格式：RUN [“可执行文件”, “参数 1”, “参数 2”]，这更像是函数调用中的格式

为了减少镜像层数推荐写法如下：

FROM debian:jessie

RUN buildDeps='gcc libc6-dev make' \
    && apt-get update \
    && apt-get install -y $buildDeps \
    && wget -O redis.tar.gz "http://download.redis.io/releases/redis-3.2.5.tar.gz" \
    && mkdir -p /usr/src/redis \
    && tar -xzf redis.tar.gz -C /usr/src/redis --strip-components=1 \
    && make -C /usr/src/redis \
    && make -C /usr/src/redis install \
    && rm -rf /var/lib/apt/lists/* \
    && rm redis.tar.gz \
    && rm -r /usr/src/redis \
    && apt-get purge -y --auto-remove $buildDeps

Dockerfile 指令详解

Build 镜像

docker build -t nginx:v3

# Dockerfile
docker build --rm -f "Dockerfile" -t sample-app:latest

# 直接用 Git repo 进行构建
docker build https://github.com/twang2218/gitlab-ce-zh.git#:8.14

# 用给定的 tar 压缩包构建
docker build http://server/context.tar.gz

Run Image

docker run --rm -d -p 5000:5000/tcp sample-app:latest

Reference

• Get Started, Part 1: Orientation and setup
• Docker overview
• Docker Docker 简介
• Docker and friends Cheat Sheet
• Installing Jenkins in Docker
